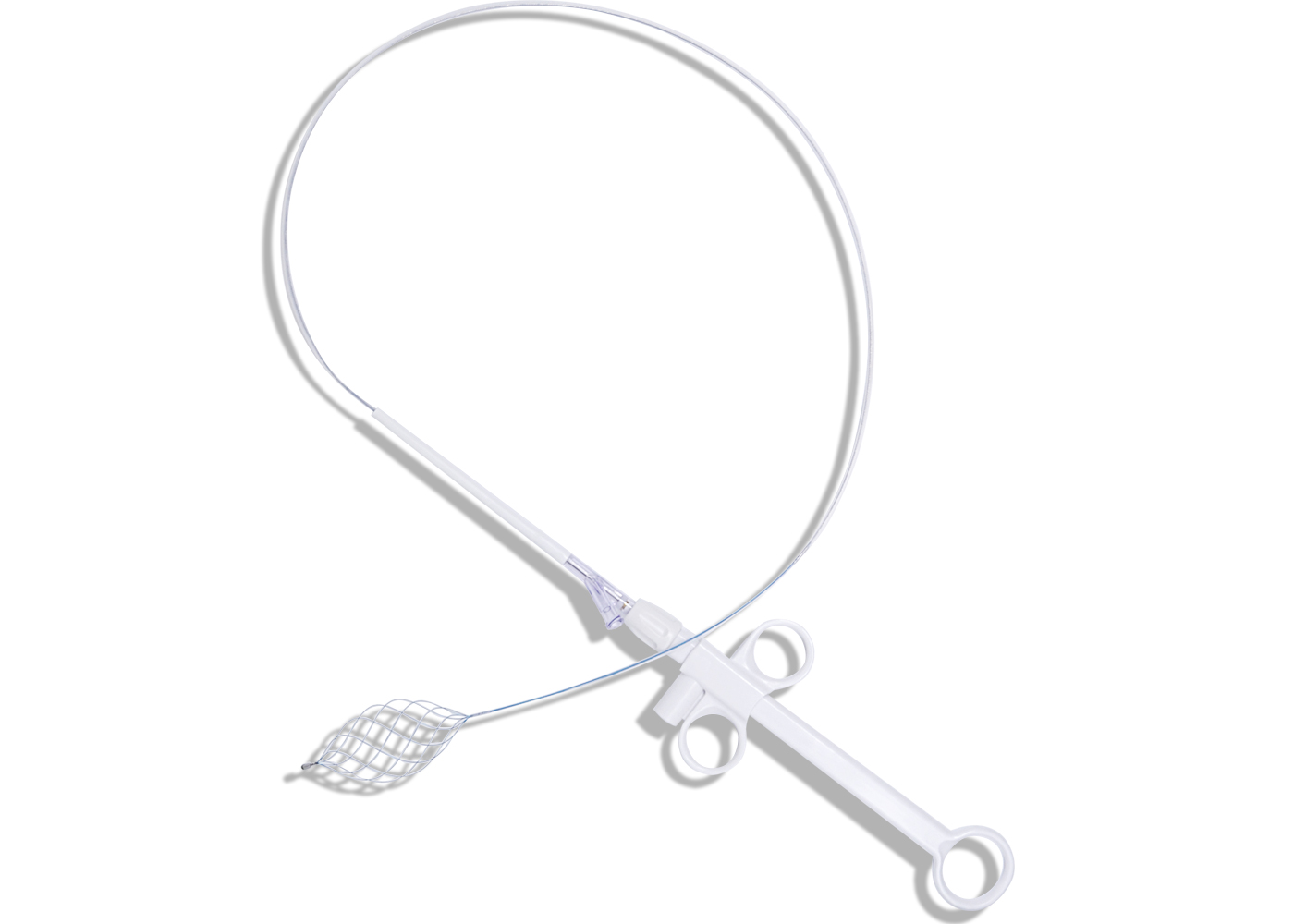

Disposable Medical Apparatus And Instruments Endoscopic Stone
Retrieval Basket
Intended use:
It is mainly used to remove the stones in the bile duct or the
foreign bodies in the upper and lower digestive tract.
Features:
1. Liquid injection port is provided in the handle to facilitate
smooth injection of contrast agent;
2. Good push performance, easier to reach the target position;
3. With rotating function, the push-pull design of the control
handle makes the stone grasping operation easier and more
effective;
4. Diamond net basket, easy to pick up and release, convenient to
repeat;
5. Memory alloy basket design ensures that the original shape of
the basket can be maintained after difficult stone removal;
6. A variety of product types, providing diamond, spiral and oval
shapes to meet various clinical needs of physicians.
Specifications:
Model | Channel O.D.
(mm) | *Working Length L
(mm) | Basket Width W
(mm) | Basket Type | Number of wires |
BS(BS1)-20*-15A4 | 2.0 | SX:700mm E:1200mm K:1600mm
| 15 | A:Diamond Shape | 4 |
BS(BS1)-20*-15A6 | 2.0 | 15 | 6 |
BS(BS1)-28*-20A4 | 2.8 | 20 | 4 |
BS(BS1)-28*-25A6 | 2.8 | 25 | 6 |
BS(BS1)-20*-15B3 | 2.0 | 15 | B:Spiral Shape | 3 |
BS(BS1)-20*-15B4 | 2.0 | 15 | 4 |
BS(BS1)-20*-15B6 | 2.0 | 15 | 6 |
BS(BS1)-28*-30B3 | 2.8 | 30 | 3 |
BS(BS1)-28*-35B4 | 2.8 | 35 | 4 |
BS(BS1)-28*-35B6 | 2.8 | 35 | 6 |
BS(BS1)-20*-15C4 | 2.0 | 15 | C:Oval Shape | 4 |
BS(BS1)-20*-15C6 | 2.0 | 15 | 6 |
BS(BS1)-28*-20C4 | 2.8 | 20 | 4 |
BS(BS1)-28*-25C6 | 2.8 | 25 | 6 |
Explanation for specification:BS/BS1 respectively represent
push-pull and 3-ring handle;other working length can be chosen from
N:1800mm,Q:2000mm and U:2300mm;basket effective length is
1.5*W;basket width 10mm,12mm,15mm,18mm,20mm,22mm,25mm,30mm and 35mm
are all available.
Packing & Delivery:
Packing:Dupont bag sterilized packaging, two layers plastic sealing, foam
paper and box packaging.
Lead time:Within 15 working days after receiving 100% prepayment.
Why Choose Us
Jiangsu Changmei Medtech Co., Ltd. is mainly engaged in medical
equipment products and production equipment design and development
and manufacturing, in particular focus on the medical balloon
catheter market, the company in the innovative balloon technology,
production equipment and integrated manufacturing field closely
follow the trend of the world, is committed to the medical balloon
catheter in the case of domestic.Our products have been in service
for improving patients’ quality of life all over the world.
- With a modern standard workshop of 6000m2,among which,1600m2 are class 100000 clean rooms in compliance with YY0033;
- National class II and class III medical device production license;
- EN ISO 13485:2012 authentication certificate by TÜV SÜD;
- With numerous patents, Jiangsu Province Science and Technology of
private enterprises;
- Experienced in interventional and endoscope equipment research and
development of minimally invasive diagnosis and treatment;
